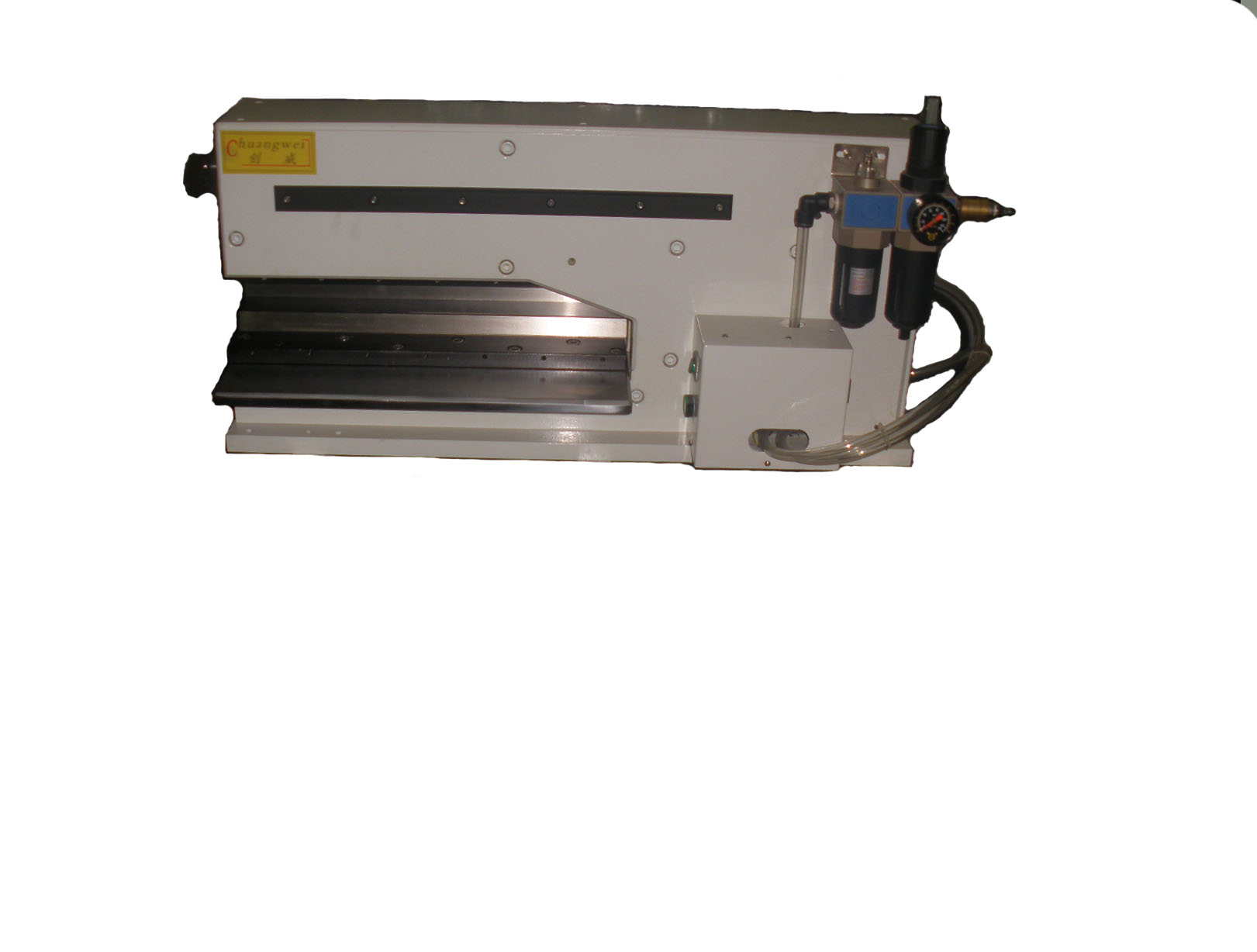

PCB depaneling - CWVC-2

PCB depaneling - CWVC-2
:
Dongguan Chuangwei Electronic Equipment Manufactory
: 2013-07-03 02:05:58
:
PCB depaneling

Inquiry Supplier / Manufacturer
Description Of PCB depaneling - CWVC-2

PCB depaneling - CWVC-2 Specificaton & Trade Terms

ModelCWVC-2
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
PCB depaneling
1.Pneumatical,non pollute
2.Safety,cutting height less 4mm
3.Protect PCB
4.Efficient,fast job

Specification:
Model CWVC-2
PCB Cutting Length (mm) 270
Cutting Thickness (mm) 0.3~3.5
Size (mm) 570*210*400
Weight (Kg) 130
Blade Working life for metal (Year/Cutting times) 1~2/0.8~1.55 million
Blade Working life for PCB (Year/Cutting times) 2.5~3/2.5 million
Blade Hardness (HB) 540~567
Blade Hardness (HRC) 60~63
Guarantee (Year) 1
Delivery (Day) 1
Min. Order (Set) 1
Ability (Set) 1000
Power Pneumatic

Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.

2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated

to high strength cutting, and excellent toughness, able to cut metal board !!!!!!

Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

Feature:
1.Motorized Linear Blade Depanelizer

2.Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

3.Operator foolproof! Panels cannot be inserted into the knives except on the score line

4.Pneumatically driven

5.Handles high components up to 1"

6.Bow waves that can occur with round knives are avoided

7.Easy adjusting of distance between knives

Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions

2.Promise day technical support services

3.Limit the handling of complaints, half an hour back to customers

4.Depanel Experts, the provision of professional PCB sub-programme

5.Reliable machine maker,we get Experts--15,each one got over 6 years
experience,equipment quality will be satisfying.
