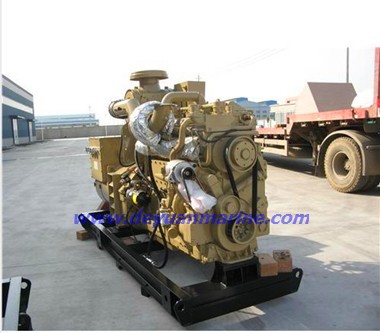

NT855 series 270HP Cummins Diesel Engine - NT855

Gegernal Engine Data:
Engine Model:NT855-M(270HP Cummins Diesel Engine )
Use:Commercial propulsion
Displacement:14L
Bore*stroke:139*152mm
Aispiration:Turbocharged
Power:201kw(270hp)@1800rpm
Engine torque:1068N-m(787ft/lb)
Brake Mean Effective Pressure:958Kpa(PSI)
Compression Ratio:14.5:1
Fining Order:1-5-3-6-2-4
Fuel system:
Fuel Consumption:52.0litre/hr(13.7gph)
Approximate Fuel Flow to pump:155l/h(41gph)
Fuel Rail Pressure Range:710kPa(103PSI)
Weight(dry):
Engine Only:1258kg(2770lb)
With heat exchanger cooling system:+127(280)
Air system:
Intake Manifold Pressure:592mm Hg(23in Hg)
Intake air flow:280litre/sec(600CFM)
Heat rejection to Ambient:kw(BTU/min) 26(1500)
Minimum Ambient Temperature for cold start(No Aids):℃(℉) 2(32)
Exhaust system:
Exhaust Gas flow(after turbine):litre(CFM) 640(1350)
Exhaust Gas Temperature(after turbine):℃(℉) 404(760)
Cooling system:
Heat rejection to Engine Coolant:kw(BTU/min):171(9700)
Engine Water Flow:litre/min(gpm) 427(113)
Raw Water Flow:litre/min(gpm)234(62)
Pressure Cap Rating w/heat exchanger:kPa(PSI) 103(15)
More Marine Cummins Engines Offered:
NT855-M 240HP,NT855-M 270HP,NT855-M 300HP Marine CUMMINS Engine .
NT855-M 340HP,NT855-M350HP,NT855-M360HP Marine CUMMINS Engine .
NT855-M 380HP,NT855-M 400HP Marine Cummins Engine .
&&&&&&:
