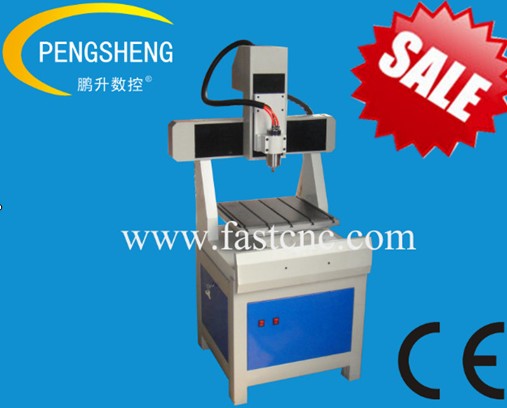

Mini cnc router 400*400*200MM - PC-4040 Specificaton & Trade Terms
| Model | PC-4040 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Feature:
1. Whole cast by aluminum.
2. The Spindle equipment is the first brand of the world, 1.5KW China domestic made water cooling spindle.
3. Three axes adopt imported ball screw and cirle orbit,stable working,high precision and long life time.
4. X axis is dustproof.It makes sure the steady working performance of the machine for long-term using.
5. Well compatibility:CAD/CAM designing software e.g.
Type3/Artcam/Castmate/Wentai etc.
6. It has the function of forecasting process time.
7. The most advantage of the machine is the gantry is fixed,but the working table can move,it can be ensure the high accuracy.
Technical Parameter:
Model PC-3030 PC-4040
X.Y working area 300mm*300mm 400*400mm
Z working area 200mm
Resolution 0.01mm
X,Y,Z structure Taiwan ball screw
Max speed 9m/min
Spindle power 800W
Spindle rotating speed 0-24000r/min
Cooling mode Water cooling
Working voltage AC220V/50/60 Hz ,2PH
Drive Motor Stepper
Command G code*.u00*.mmg*plt
Operating system NC Studio
Diameter of cutter 3.175-8
Work-holding By clamp
Applicable industries:
This machine can be used for Stone, Brass and AL Processing, mold manufacturing, wood processing, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, as well as stamp and PCB drilling.
Applicable industries:
Wood,plastic,PVC,PCB board,MDF,Artificial Stone,Acrylic,etc
