Marine Side Scuttles

Inquiry Supplier / Manufacturer
Description Of Marine Side Scuttles - a4

Marine Side Scuttles - a4 Specificaton & Trade Terms

Modela4
Place Of Originchina
Price TermEX-Work
Payment TermT/T
Marine Side Scuttles
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine outfitting equipment,such as marine steel doors,marine aluminum door,marine windows,marine hatch cover,marine pilot rope ladder,embarkation rope ladder,gangway ladder ,bulwark ladder etc.
This product is applied to marine ships and naval ships,and to the inland ships,too.The standard is equivalent to the international standard ISO1751

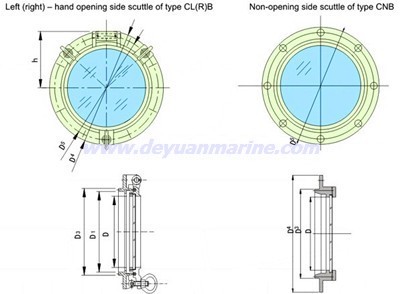

bolted side scuttle series
Model Clear size
D D1 D2 D3 D4 D5 Number of fasteners Bolts for installation Opening
of
casting
wall
Deadlight Glass
holder thread quantity
A
200 245 204 250 350 310 2 3 M16 8 253
250 295 254 305 400 364 2 3 M16 8 308
300 350 304 360 450 414 3 3 M16 12 363
350 400 354 410 500 464 3 3 M16 12 413
400 450 404 460 550 514 3 3 M18 12 463

&&&&&&:
