Description Of MINI SOLAR HOME SYSTEM - 10W Solar Power System

MINI SOLAR HOME SYSTEM - 10W Solar Power System Specificaton & Trade Terms

Model10W Solar Power System
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
Description:

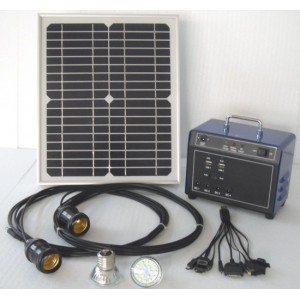

This product is a multi-function mini solar home lighting system. It can also be used as a portable backup power / charger for your mobile, On a fully charged battery, the unit can be used to provide lighting during power failures or if you consider travelling, camping or plan other outdoor activities, then this kit is an ideal solution in lighting emergencies.



Technical parameters:

Name
Norms
Parameters
Quantity

Solar panels with mono
Rated power
10W
1pcs

Open circuit current
0.61A

Working current
0.55A

Open circuit voltage
21.24V

Working voltage
18V

Battery
Maintenance free lead acid battery
12V/7Ah
1pcs

Solar charger controller
Rated voltage
12V
1pcs

Discharge current
5A

Charging resuming voltage
13.3V/26.6V(lead acid)

Battery overvoltage protection/resume
16.5V/15V

Range of owe voltage disconnecting
10.6V-11.6V

Range of resuming voltage
12.2V-13.2V

Output
DC 12V
12V/5A
4pcs

USB
5.5V/8.4V
2pcs

Accessories
LED lighting
1.5W
2pcs

USB 10 chargers

1pcs

Lighting line
5M
2pcs

Size
(box)L200*W90*H115,(panel)L350*W290*H25

Weight
(box)2.85KG,(panel)1.25KG


Backup time:

Name
Norms
quantity
Backup time(hours)

LED
1.5W
1pcs
40

LED
3W
1pcs
20
