METAL PANEL - AG5-005

METAL PANEL - AG5-005
:
beijing beihai building material co.,ltd
: 2010-12-02 17:58:33
:
ACP. BRICK, SIDING . WALL PANEL . prefab house p

Inquiry Supplier / Manufacturer
Description Of METAL PANEL - AG5-005

METAL PANEL - AG5-005 Specificaton & Trade Terms

ModelAG5-005
Place Of OriginCHINA
Price TermEX-Work
Payment TermT/T
1. metal Sandwich Panel or heat preserving decorating metal board is a new kind of light-weight building material, It is mainly used on outer wall for heat preserving and decorating.it have been rewarded CE and ISO9001:2000 certificate.
2. Structure:It consists of three layers: the outside layer is aluminum zinc coated metal board; the core material is polyurethane foaming; the last layer is aluminum foil.

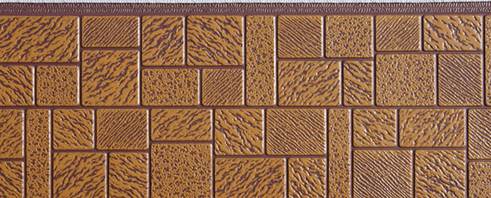

3. Patterns. fine brick-texture, coarse brick texture, stone texture, mosaic texture, water wave texture, tile texture, marble texture and flat board with no texure. We have more than 150 kinds of colors for your choice.
4. Superior performance:Heat preserving, heat insulation, water prroof, impact resisting, pressure resisting, fire proof, quake resisting, light weight, easy to construct, beautiful, durable, energy efficient, environment friendly. Etc.
5. constrution: we have our own fittings system to fix the panel.First ,fix the keel on the wall surface and then hang the panel directly on the keel,so it is very convenient to construct.A common worker without any professional train, can insert more than 50 sqm in 8 hours.
6. SPEC:38000*380*16mm
Thickness: 1.6 cm ; width: 38cm; length: 3-6m ( standard length 3.8m)
7. PACKING : 3840x420x140mm.
Packing Quantity:8pcs/CTN.
Unit Weight: less than 5.5kg/pc.
Gross Weight:45kg/CTN.
1x40ft.Container:3500sq.meters;
1*20ft.container: 1100sq.meters.
7.Fire-proof standard: Grade B.
8.Delivery of time: 20 days
9. PRICE:15.4 to 16.8 USD per square meter EXW
10.website:
***/enindex.asp
