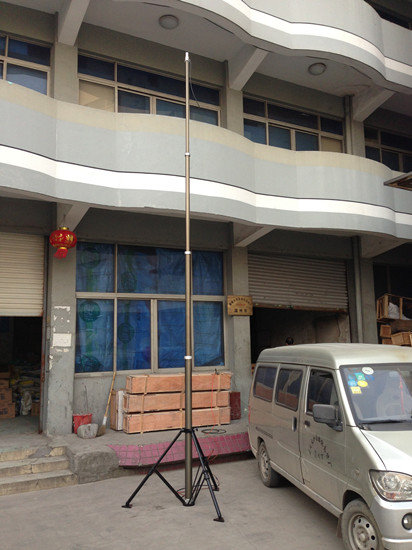

Lighting internal cable masts - GSD-120-GT(1880-5700) Specificaton & Trade Terms
Model | GSD-120-GT(1880-5700) |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
Specification sheet
Retracted height: 1.88m
Extended height: 5.7m
No of sections: 4 Section
OD Range: 35mm~87mm
Payload capacity: 30kg
Material: 6061T6
Bottom mounting kit,top platform
Mast approx Weight: 16kg
Spiral Cable Specs : 3core (15AWG) PS: AWG refer to American Wire Gauge
We also have Internal CCTV Cable mast series tailor to your different needs.
We can put AC,DC cable, video coaxial 75ohms cable, CAT6 inside the masts for surveillance ,lighting , air plane locater etc use
Options: Tripod Stands , Guywire&ground nail Air compressor(12v/24v/220v/110v) , Foot pump ,Pneumatic fitting ,Valves ,Air tube
We are China largest telescopic mast maker, we do pneumatic telescopic mast, manual winch mechanical masts, portable masts, military color masts, all kind of masts, good quality and price.
We look forward to your visit and asking price. We have sold thousands of masts both international and domestic.
Usage: Military antenna vehicle Telecommunication Trailer Communication vehicle Military Shelter Fire rescue vehicle Recreation vehicle Electricity emergency vehicle Monitored control system Diesel generator light tower Border line Defence TV broadcast vehicle Camera shooting system Speciality vehicle Golf course lighting system
