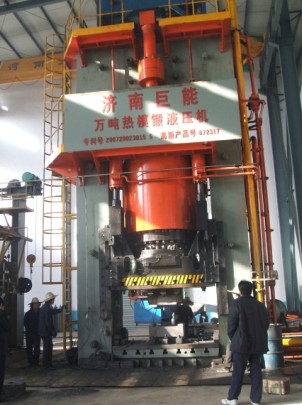

Close die forging press

Inquiry Supplier / Manufacturer
Description Of Hydraulic close die forging press - Hydraulic close die forging press

Hydraulic close die forging press - Hydraulic close die forging press Specificaton & Trade Terms

ModelHydraulic close die forging press
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
Max. press force: 30,000ton
Leading parameter
(1) Nominal press force: ≥70MN
(2) Return force: ≥5MN
(3) Moveable beam working speed
Quick down at free stroke: 200mm/s (stepless adjustable)
Pressurizing speed: 17-35mm/s
Return speed: 100mm/s (adjustable)
(4) Down unloading force: ≥2MN
(5) Down unloading stroke: ≥300mm
(6) Down unloading speed: 100mm/s
(7) Max. stroke of moveable beam: ≥1000mm
(8) Open height of the press: ≥1500mm
(9) Down working table size: 1500mm x 1500mm
(10) Working area size under moveable beam: 1500mm x 1500mm
(11) Heat insulation bolster size: 1500mm x 1500mm
(12) Heating bolster size: 1500mm x 1500mm
(13) Heating bolster height above ground: 750mm
(14) Working pressure of liquid: 31.5MPa
(15) Press height above ground: 12000mm
(16) Total power: ≤1200kW
