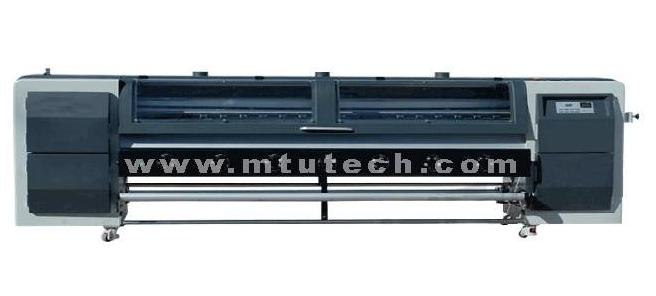

Heavy-Duty Konica KM512 Solvent Printer - KN33-

Performance & Heavy-Duty

It satisfy both sufficiently amazing speed of 80 sqm at standard mode, and high quality demands to make your business accelerate. While maintaining your current quality you can typically shorten your job turnaround time by up to 75%.You will no longer lose business opportunities because of an inability to provide immediate deliveries.
MODEL KN3308H KN3306H KN3304H KN2508H KN2506H KN2504H KN1808H KN1806H KN1804H
Printing Width(m) Up to 3.2m Up to 2.5m Up to 1.8(m)
Print Head Konica-KM512LN(42pl/14pl)
Print Head Quantity 4*2 6*1 4*1 4*2 6*1 4*1 4*2 6*1 4*1
Printing Resolution 720 dpi/1440dpi
Printing Speed Draft 160m2/h 80m2/h 80m2/h 146m2/h 73m2/h 73m2/h 120m2/h 60m2/h 60m2/h
Standard 80m2/h 40m2/h 40m2/h 70m2/h 35m2/h 35m2/h 56m2/h 28m2/h 28m2/h
High Quality 45m2/h 22m2/h 22m2/h 35m2/h 18m2/h 18m2/h 30m2/h 16m2/h 16m2/h
Print Head Height 2-4mm adjustable
RIP Software WASATCH/PHOTOPRINT/MAINTOP
Dimensions(Printer) L4750*W930*H1280mm/520kg L4110*W930*H1280mm/450kg L3410*W930*H1280mm/380kg
Print Mode UNI/Bi Direction
Media Type PVC Banner/Vinyl Coating Film/Mesh/Fabrics/Paper
Heater Front,Middle and Post Equipped
Ink Type Solvent/ECO Solvent
Print Head Controls Printhead Temperature and Voltage are software adjustable
Power Single Phase,220V±10%＞10A,50/60HZ
Work Environment Temperature 18.0℃-28.0℃
Humidity 40%-60%RH
Interface PCI High Speed Card
Printhead Cleaning Positive Pressure Print Head Cleaning
Auto Feeding and Take-up Equipped
