Glazed Tile Roll Forming Machine - LT 27-190-950

Glazed Tile Roll Forming Machine - LT 27-190-950
:
Zhucheng Litian Machinery Co.,Ltd.
: 2009-09-09 00:43:23
:
Construction Machinery

Inquiry Supplier / Manufacturer
Description Of Glazed Tile Roll Forming Machine - LT 27-190-950

Glazed Tile Roll Forming Machine - LT 27-190-950 Specificaton & Trade Terms

ModelLT 27-190-950
Place Of OriginShandong, China
Price TermEX-Work
Payment TermT/T

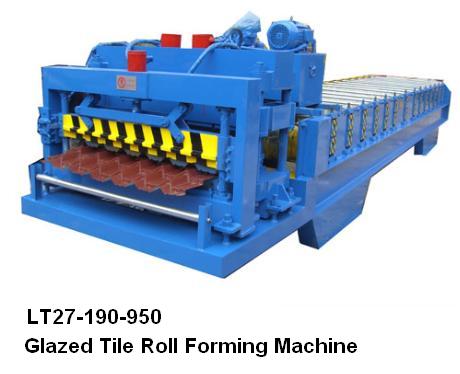

LT 27-190-950 Glazed Tile Roll Forming Machine

Technical specs:
1. Material Width: 1220mm.
2. Material Thickness: 0.5mm-0.6mm.
3. Forming speed: 2.0m-5.0m/min.
4. Forming stations: 11
5. Material of the main shaft and rollers: good45# , rigid chrome coated.
6. Material of hydraulic cutter : Cr12MoV.
7. Power of main motor : 7.5kw.
8. Power of hydraulic station: 4kw.
9. Electric control system: PLC.
10. Driving system: chain driven by motor reducer
11. Dimensions: about 5500mmx1800mmx1400mm.
12. Function: forming roof panel
