Description Of Glazed Tile Roll Forming Machine - LT 24-185-1110

Glazed Tile Roll Forming Machine - LT 24-185-1110 Specificaton & Trade Terms

ModelLT 24-185-1110
Place Of OriginShandong, China
Price TermEX-Work
Payment TermT/T

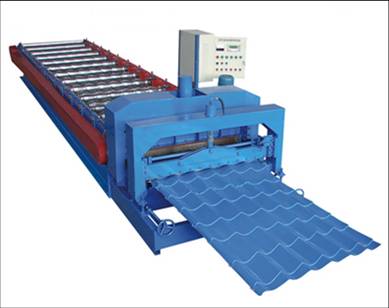

LT 24-185-1110 Slant Arc Glazed Tile Roll Forming Machine
Technical specs:
1. Material Width: 1250mm.
2. Material Thickness: 0.5mm-0.6mm.
3. Forming speed: 2m-5m/min.
4. Forming stations: 12
5. Material of the main shaft and rollers: good45# , rigid chrome coated.
6. Material of hydraulic cutter : Cr12MoV.
7. Power of main motor : 4kw.
8. Power of hydraulic station: 3kw.
9. Electric control system: PLC
10. Driving system: chain driven by motor reducer
11. Dimensions: about 5200mmx1800mmx1400mm.
12. Function: forming roof panel
