Electronic Digital Garden Water Timer - CGWC-020

Electronic Digital Garden Water Timer - CGWC-020
:
Xiamen Cleargreen International Trading Co.,Limited
: 2013-05-22 02:41:40
:
water timer,irrigation controller,water meter

Inquiry Supplier / Manufacturer
Description Of Electronic Digital Garden Water Timer - CGWC-020

Electronic Digital Garden Water Timer - CGWC-020 Specificaton & Trade Terms

ModelCGWC-020
Place Of OriginChina
Price TermEX-Work
Payment TermT/T

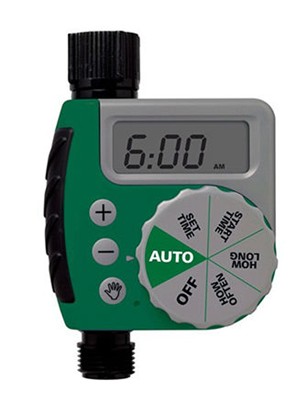

CGWC-020 Electronic Digital Garden Water Timer
Rain delay feature for water conservation
One outlet timed watering
Manual bypass lets you use your faucet without inturrupting timed programming
Requires 2 AA batteries (not included)

Instruction:
1) Installing two AA (1.5V) batteries(not included).
2) Installation: Attach timer to an outdoor hose faucet and turn on after programming.
3) Programming the timer: Rotate the dial to position indicated for set up.
4) Set Clock: Press the + button to advance clock time(hold button for quick advance).Press the - button to reverse clock time(hold button for quick reverse)
5) Start Time: Press the + button to advance start time(hold button for quick advance).Press the - button to reverse start time(hold button for quick reverse)
6) How Long: Set watering duration from 1 to 240 minutes using the + and - buttons.
7) How Often: Set watering frequency as every 6 hrs,12 hrs, or from 1 to 7 days using the + and - buttons. 1 is every day, 2 is every other day etc. Up to 7 days.
8) AUTO: Timer waters according to programmed time,duration, and frequency.
9) Rain Delay: When in AUTO, press + button for 24 hrs, 48 hrs, or 72 hrs.Screen will flash between clock and hours remaining before programmed cycle resumes.To remove rain delay, turn dial to OFF and then back to AUTO.
10) Manual/Hand Watering: To water without interrupting the set cycle,press [MANUAL] button and then use + and - buttons to set from 1 to 240 minutes.To remove manual watering(turn off),turn dial to OFF.To resume programmed cycle turn the dial back to AUTO.
