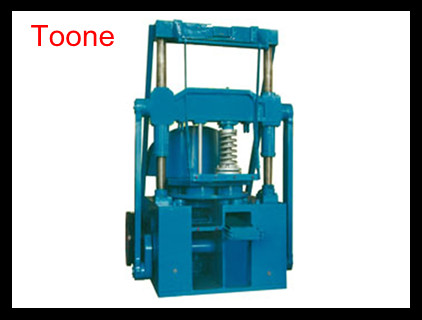

Double column closed 220 coal briquette machine - 220 Specificaton & Trade Terms
| Model | 220 |
|---|
| Place Of Origin | China |
|---|
| Packaging | Standard export package and fumigation-free wooden cases |
|---|
| Brand | Toone |
|---|
| Gurantee | Six month including wearing parts |
|---|
| Certifications | ISO |
|---|
| Price Term | EX-Work,FOB,CIF,etc |
|---|
| Payment Term | T/T,L/C |
|---|
| Supply Ability | 10 sets / week |
|---|
| Minimum Order | 1 set |
|---|
| Loading Ports | Qingdao,Tianjin,Shanghai,etc |
|---|
| Delivery Time | About 30 days |
|---|
Closed 220 honeycomb briquette machine
This machine is simple in structure, divided into the body, rotating, feeding, punching, conveying five parts. The platen, the base of the body, which formed the skeleton entity of the machine. Various parts complement each other, coordinated operation.
220 type honeycomb briquette machine can produce round or square honeycomb briquet with specifications of diameter below 220 mm, height below 100 mm. Common section size is Φ220, Φ180,φ150,φ160, Φ140, 125 x 125,etc, height is 100mm, 80mm, 75mm. Can also produce various specifications of the honeycomb briquet which produced by 220mm following honeycomb machine.
Double column closed 220 honeycomb briquette machine
productivity 30Blocks / min
Motor 4-pole 11 kw
Coal ball type Circular: below Ф220 mm
Square: below200 *200 mm
