DUMP HOIST - KRM201A

DUMP HOIST - KRM201A
:
XIANJU QUNRUI MACHINERY CO.,LTD
: 2013-08-19 22:51:24
:
HOIST GEAR PUMP DRIVE SHAFT PIPE

Inquiry Supplier / Manufacturer
Description Of DUMP HOIST - KRM201A

DUMP HOIST - KRM201A Specificaton & Trade Terms

ModelKRM201A
Place Of OriginCHINA
Price TermEX-Work
Payment TermT/T

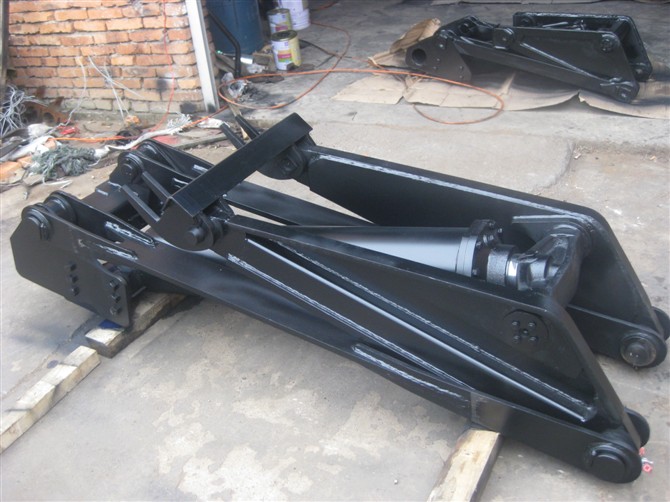

KRM201A lifting frame includes bracket, cylinder, gear pumps, export oil fittings, imported oil fittings, pipe fittings, pipes, tanks, drive shaft, joystick, carriage support package * 4 flippers and other accessories.
KRM201 lifting frame used in the Nissan truck, Dimension: 1765 * 620 * 470mm, rated lifting capacity :16-18 tons, working pressure: 11.8MPa, Cylinder diameter: 180mm, cylinder stroke: 931mm, length of recovery: 12691mm, maximum allowable pressure: 20.6MPa.
Gross vehicle weight of 25-32 tons of suggestions, carriage length: 5300mm, rear overhang length: 900mm, load center distance between the hinge: 1750mm, trunnion distance between the high: 2480mm, set a maximum lifting capacity of 32 tons .
