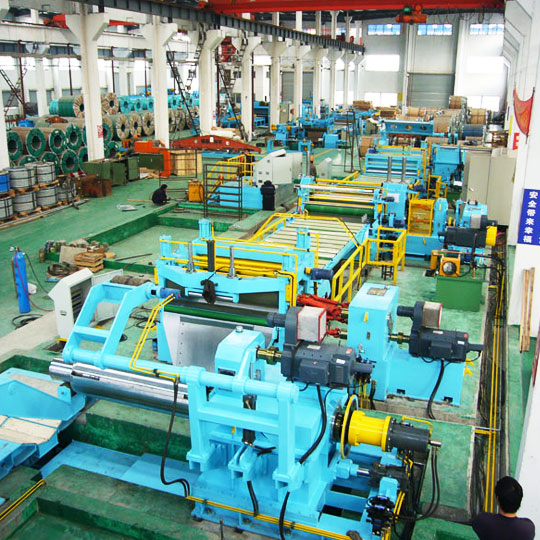

Cut to length - KJD

Technical Data for KJAseries
Material cutting Cold roll steel, galvaniz roll.
Item Unit Range
Thickness MM 0.3-2, 0.5-3
Width MM 1250,1500,2000
Load weight T 12
Leveling precision MM/M2 1.2
Measuring precision MM/M 1.0
Line speed M/MIN 25
Power KW 50, 60
II. General Induction of cut to length line
Cut To Length Lines can do uncoiling, leveling, measuring, cross-cutting to length and stacking work. It mainly includes uncoiler, leveler, measuring encoder, shearer, conveyor, stacker, hydraulic system, pneumatic system and electrical system, etc., the line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating.
Cut to length line is controlled byPLC system. It has PLC controlled the length measurement. The information of length, shearing numbers and speed can be input to the PLC systems. When the need shearing number is reached the line can stop automatically. The line speed can be adjusted, It has a encoder with high precision, and whole line can work automatically and operate easily, smooth sheet can be made.
III. LIST OF EQUIPMENTS UNDER SCOPE OF SUPPLY:
1. Coil car
2. Decoiler
3. peeler table
4. leveler
5. Side Guide Roller
6. measuring table with encoder
7. Shearing Machine
8. Conveyor table
9. stacking table
10. trolley car
11. Hydraulic Systems
12. Pneumatic Systems
13. Electrical System PLC Control
