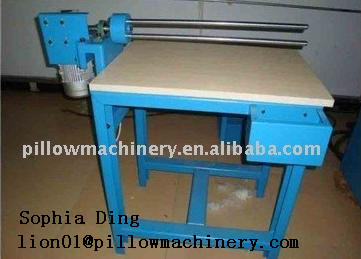

Cushion roll packing machine - QL700-R Specificaton & Trade Terms
| Model | QL700-R |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Specification:
Item no.: QL700-R
Dimension: 1100*720*1100mm
Rod length: 700mm
Rod diameter: Dia.20mm
Rods Distance: 60mm
Motor: 0.75kw
Voltage: 415v 50Hz 3phase
Capacity: 10pcs/min
Weight: 200kg
Description:
The roll packing machine is mainly used for pillow; cushion and chair pads packing with a plastic bag.
The finished production is without any pressing, so that the pillow can be 100% elasticity remained.
There are 2pcs of rod that hole the pillow and turning into the bag; it must be hold by 2 hands during the time, so that is safe enough to the operator.
The operation is controlled by foot switch and the rolling speed is adjustable.
