Conveyor Belts Vulcanizing Machine - XLB- 1600X8500*1 Specificaton & Trade Terms
| Model | XLB- 1600X8500*1 |
|---|
| Place Of Origin | China |
|---|
| Packaging | wooden case |
|---|
| Brand | SFC |
|---|
| Gurantee | ONE YEAR |
|---|
| Certifications | ISO9001:2008 |
|---|
| Price Term | EX-Work, FOB, CIF, CFR |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 50 Sets/Month |
|---|
| Minimum Order | 1 |
|---|
| Loading Ports | Qingdao Port |
|---|
| Delivery Time | 45 days |
|---|

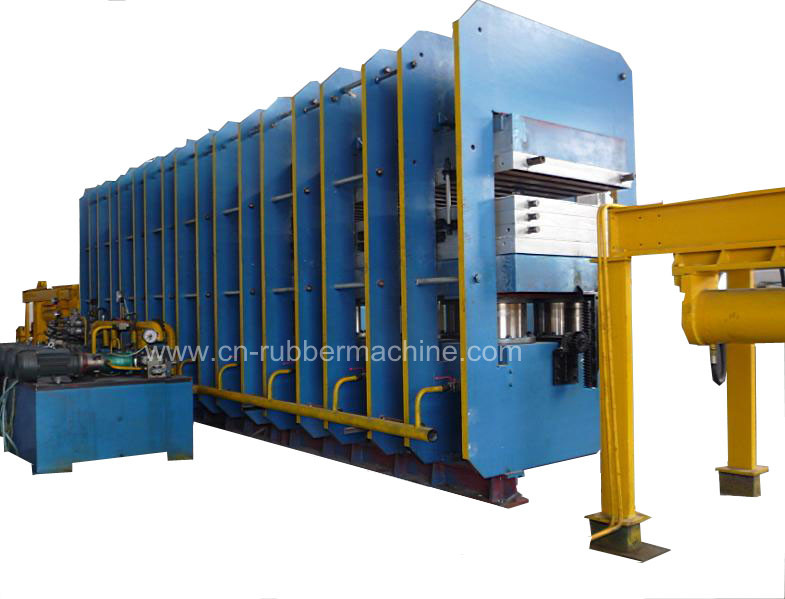

Conveyer Belt Vulcanizing Machine
1. Conveyer Belt Vulcanizing Machine has compact body and can vulcanize big-type conveyor belt with a higher level of automation.
2. Conveyer Belt Vulcanizing Machine is applicable to vulcanize such conveyor belts as common rubber conveyor belts, nylon conveyor belts, steel cord conveyor belt and flame-retardant conveyor belt.
3. As the host machine use frame structure with micro fabrication and hot plate and piston all use superior-quality materials, so it is not apt to be corrosive wear and also has the following characteristics: Convenient maintenance, stably working pressure and convenient adjustment.
4. Conveyer Belt Vulcanizing Machine system is controlled by PLC so as to realize multi-program automatic control including automatic detection and the adjustment for hot plate temperature
5. All of the Conveyer Belt Vulcanizing Machine improve the whole level of the vulcanizing unit, reduce the worker's labor intensity and enhance the production efficiency.
6. In addition, our company can supply various type of Conveyor Belt Vulcanizing Unit according to customers' requirements.
Technical Parameter:
Parameter Unit XLB- 1800X
12000*2 XLB- 1800X 10000*2 XLB-
1600X
10000*2 XLB- 1600X
10000*1 XLB- 1600X
8500*1 XLB- 1400X
10000*1 XLB- 1400X
8000*2 XLB- 1400X
5700*2 XLB- 1100X
5700*2 XLB-
1300X
4000*2
Hot-plate Size mm 1800*12000 1800*1000 1600*10000 1600*10000 1600*8500 1400*10000 1400*8000 1400*5700 1100*5700 1300*4000
Total Pressure mn 74.00 72.00 56.00 64.00 47.60 49.00 34.00 25.00 17.55 14.56
Hot-plate Unit Pressure Mpa 3.4 4.0 3.5 4.0 3.5 3.5 3.1 3.13 2.8 2.8
Plunger Diameter mm 500 500 450 500 500 450 400 360 500 500
Plunger No 18 18 18 18 14 18 16 10 5 4
Max. Plunger Stroke mm 400 300 400 300 300 300 400 400 520 250
Gripping Strength mn 1.20 1.50 1.20 1.20 0.6 0.90 1.00 0.72 0.50 0.5
Tension Force mn 1.101.2 1.10 1.0 0.5 0.80 0.90 0.60 0.40 0.4
Steam Pressure Mpa 0.63 0.6-0.8 0.63 0.6-0.8 0.63 0.63 0.63 0.63 0.63 0.63
Cooling Water Pressure Mpa 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Controlling Method PLC PLC PLC PLC PLC PLC PLC PLC PLC PLC
Dimension L mm 12***00 1***00 8***0 4000
W mm 2***0 2***0 2***0 2050
H mm 3***0 3***0 3***5 2795
