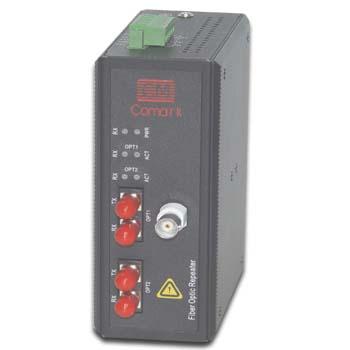

ControlNet fiber optic repeater - Ci-cf110-120 Specificaton & Trade Terms
| Model | Ci-cf110-120 |
|---|
| Place Of Origin | China |
|---|
| Packaging | Standard Carton |
|---|
| Brand | Comark |
|---|
| Gurantee | 3 years warranty |
|---|
| Certifications | CE, FCC, TUV |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T, Western Union |
|---|
| Supply Ability | 1,000 pcs per week |
|---|
| Minimum Order | 1 pair |
|---|
| Loading Ports | Shenzhen |
|---|
| Delivery Time | 3 to 5 days |
|---|
Electrical interface
Wire Cable Connection: BNC f-male
Signal type: ControlNet fieldbus
Data Rate:5M
Isolation voltage: Instantaneous voltage 5000V, constant voltage 1000V
Wire End Termination:Internal,75Ω
Optical interface
Wave length: multi mode 850nm、1310 nm; single mode 1310 nm、1550nm
Fiber type: multi mode 50/125um、62.5/125um、100/140um;single mode 8.3/125 um、9/125um、10/125um
Transmission distance: MM 2Km, SM 20Km
Fiber interface type: ST/SC/FC (optional); ST (standard configuration).
Power
Input Voltage: 24VDC(9VDC~30VDC)
Support dual power backup
Consumption:24VDC@60mA(＜1.5W)
With DC1000V voltage isolation and reverse connect protection
5-pin Pluggable Screw Terminal
Relay
Contact rating: DC48V/1A Max
Fiber link fault and No voltage input alarm
Industrial Pluggable Screw Terminal
Mechanical
Dimensions: 132mm×52mm×105mm (H×W×D)
Casing: IP30 protection, Metal case
Installation: 35mmDIN-Rail, Wall Mounting
Weight :800g
Environmental
Operating Temperature: -10℃ to 70℃ (-40℃ to85℃ optional)
Storage Temperature: -40℃ to 80℃
Ambient Relative Humidity: ≤90% (non-condensing)
