Computerized Bear Stuffing Line - QL180-TS-2

Computerized Bear Stuffing Line - QL180-TS-2
:
Qingdao Lion Machinery Co., Ltd.
: 2011-07-08 18:16:38
:
teddy bear filling machine

Inquiry Supplier / Manufacturer
Description Of Computerized Bear Stuffing Line - QL180-TS-2

Computerized Bear Stuffing Line - QL180-TS-2 Specificaton & Trade Terms

ModelQL180-TS-2
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
Specification:
Item no.: QL180-TS-2
Equipment: Fiber opener 1pcs; Fan 1pcs; double slot stuffer 2sets; Control screen 1pcs.
Dimension: 4600*4800*2400mm
Voltage: 380v 50Hz 3phase
Power: 12.85kw
Stuffing pipe diameter: 1.2-6cm * 4sets
Stuffing slot: 4 pcs
Labor: 5 person
Air pressure: 0.6-0.8Mpa, 1.2kg/m3
Control system: PLC controlling
Capacity: approx. 300kg/h
Weight: 1500kg
Description:

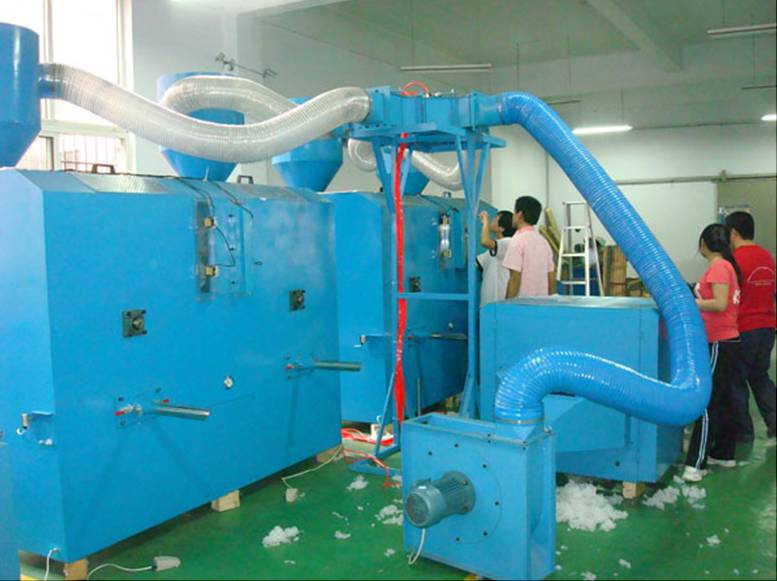

The computerized teddy bear stuffer is the highest technical for toy producing in China that the whole line is controlled by computerized system.
Only 5 operators producing about the 300kg per hour can handle it.
The material application is 2 or 3 dimensional hollow siliconized polyester fiber that shorter than 100mm; the best material choice for bear producing is 32mm length and other spec. is the same.
High capacity and technology, reliable quality.
Please contact us to get the operation video for a reference.
