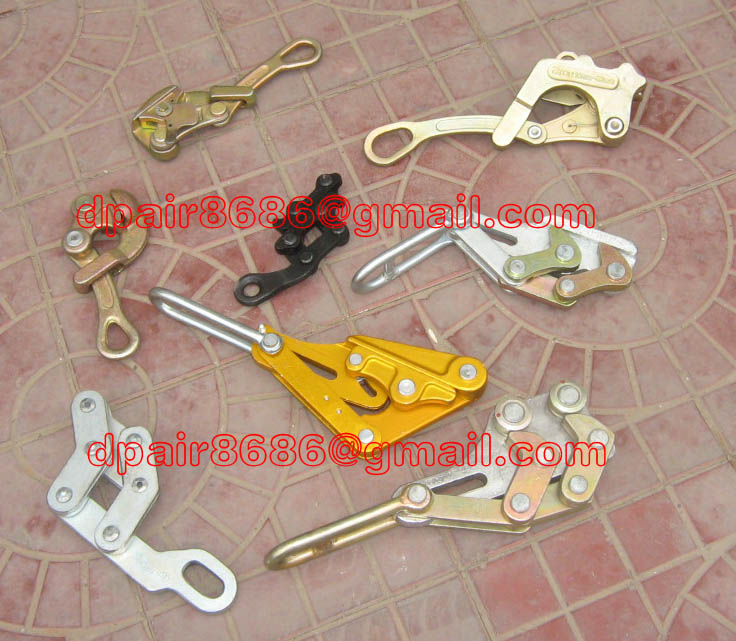

Come Along Clamp/Automatic Clamps/ Wire Grips

Inquiry Supplier / Manufacturer
Description Of Come Along Clamp/Automatic Clamps/ Wire Grips - dl-10

Come Along Clamp/Automatic Clamps/ Wire Grips - dl-10 Specificaton & Trade Terms

Modeldl-10
Place Of Originchina
Price TermEX-Work
Payment TermT/T
Come Along Clamp/Automatic Clamps/ Wire Grips
Application: steel-cored aluminium strand wire, communication cable, copper wire, aluminium wire.
Product No. Applicable conducting wire(LGJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
LSJ-1 25-70 1000 6-14 1.05
LSJ -2 95-120 1500 13-18 1.40
LSJ -3 150-240 2500 17-24 2.9
LSJ -4 300-400 4000 25-37 4.0
LSJ -5 500-630 5000 30-40 6.7
Application: insulated conductor, bare copper wire, bare aluminium wire.
Product No. Applicable conducting wire(LGJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SJKL-1 25-70 1000 Φ13.8-Φ17.8 1.55
SJKL-2 95-120 1500 Φ19.6-Φ21 2.4
SJKL-3 150-240 2500 Φ22.6-Φ26.4 3.6
SJKL-4 300-400 2500 Φ27.4-Φ29.8 5.4
Application: steel strand, steel-cored aluminium strand wire, copper and aluminium wire.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SKK-1 25-50 2000 6-10 2.4
SKK-2 50-70 3000 10-12 4.0
SKK-3 70-120 5000 12-18 5.4
Application: steel-cored aluminium strand wire, communication cable, copper wire, aluminium wire.
Product No. Applicable conducting wire(LGJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
GSJ-1 25-70 1000 6-14 1.5
GSJ -2 95-120 1500 13-18 2.9
GSJ -3 150-240 2500 17-24 4.2
Application: steel cable, steel strand, steel wire rope.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SKD-1 25-50 2000 6-11 1.3
SKD-2 70-120 5000 12-16 1.7
Application: steel cable, steel strand, steel wire rope.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SKDS-1 25-50 1000 6-11 1.9
SKDS-2 50-70 1500 10-13 2.4
SKDS-3 70-120 2500 12-15 3.5
Application: steel cable, steel strand, steel wire rope.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SKDP-1 25-50 1000 6-11 2.3
SKDP-2 50-70 2000 10-13 2.7
SKDP-3 70-120 3000 12-15 3.7
Application: used for weaving anti-twist steel wire rope.
Product No. Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SFK-1 5000 11-15 6.5
SFK-2 7000 16-18 8.5
SFK-3 12000 19-21or22-24 13.6
SFK-4 20000 26~30 32.5
Application: used for OPGW gripping..
Product No. Applicable range (mm) Rated load (Kg) Jaw shape Weight (kg)
SKG-1 Φ11.7-Φ17 2500 round 5.1
Application: steel strand, steel-cored aluminium strand wire, all kinds of conducting wire.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Max. applicable diameter(mm) Weight (kg)
SKQ-1 GJ35 1500 9 2.1
SKQ-2 GJ50 2000 10 2.1
SKQ-3 GJ70 2500 12 3.6
SKQ-4 GJ100 3000 14 3.6
Application: used for ground wire (steel strand or aluminium steel stranded cable) construction.

Product No. Applicable conducting wire(GJ) Rated load (Kg) Max. applicable diameter(mm) Weight (kg)
SSE-1 GJ25 1000 9.5 2.5
SSE-2 GJ35 1000 9.5 2.5
SSE-3 GJ50 1500 10 3.5
SSE-4 GJ70 2000 12.5 5.0
SSE-5 GJ100 3000 14 5.0

Application: steel rope, steel strand, copper wire, insulated wire.

Product No Applicable wire diameter(mm) Rated load (Kg) Weight (kg)
SD-1000 2.6-15 1000 0.7
SD-2000 4-22 2000 1.5
SD-3000 16-32 3000 2.6
