Cobra snake /HPDE reel rodder

Inquiry Supplier / Manufacturer
Description Of Cobra snake /HPDE reel rodder - 01

Cobra snake /HPDE reel rodder - 01 Specificaton & Trade Terms

Model01
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
Cobra snake /HPDE reel rodder
Fiberglass hose is lightweight and non-conductive,wear-resisting, Because of the extreme flexibility, it can be used for communications, electric power and others department HDPE pipes cable, the cable specific tapes as push-pull tools.

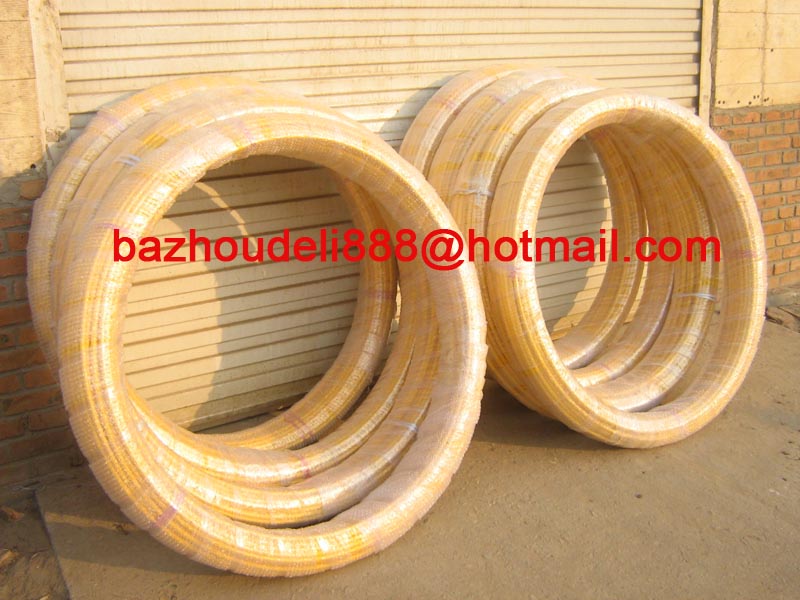

A high quality fibreglass rod, specially constructed to provide exceptionally high tensile strengths, whilst retaining flexibility. The 75-80% fill rate glass-fibre core is reinforced with a high strength resin at high temperture. A braided reinforcing wrap is added before the final polypropylene wear resistant protective coating is applied. .They also have favorable electrical and thermal properties that make them safe for use in cable-occupied duct. They are suitable for pulling back winch line or small diameter cable. They are often used in pipe and duct laying operations to assist with the installation of draw ropes, cables and winch wires. They can also be used as part of a CCTV or pipe cleaning system. The continuous rods range from 4.5mm-16mm with lengths from 20 meters-400 meters
Continuous high quality coated fibreglass rod with brass end fittings and smooth profile guiding tip. This type of rodding is faster and more economical than the screw together type rods. The frame is of a rugged steel construction with zinc plating and an integral fully adjustable brake system fitted as standard. All frame and rod fittings are available as spares.
Features: 1. Material: 75-80% High Density Fiberglass 2. favorable electrical and thermal propertie for safety used in cable-occupied duct.3. Rustproof bull-nose pulling eye 4. Rugged tubular steel reel with adjustable brake system. 5. Feed device allows rod to feed out or be wound back onto reel with easy push or pull of rod 6. Many applications, both commercial and residential 7. All frame and rod fittings are available 8. For detection purpose, inside add copper wire, stainless steel wire, steel wire,etc.9. Different length and color duct rodder available

Technical Datas:
COLOR WHITE,YELLOW,RED,GREEN,BLACK,ORENGE,BLUE
Frame color black、silvery white、blue、red
SIZE 650mm x 250mm x 680mm、1230mm x 470mm x 1350mm、
1300mm x 470mm x 1420mm、400mm x 180mm x 430mm
Diameter
4mm 6mm 8mm 9mm 10mm 11mm 12mm 13mm 14mm
Min. Bend Radius mm
4mm 6mm 8mm 9mm 10mm 11mm 12mm 13mm 14mm
140 mm 190 mm 220 mm 260 mm 330 mm 390 mm 450 mm 500 mm 550 mm
