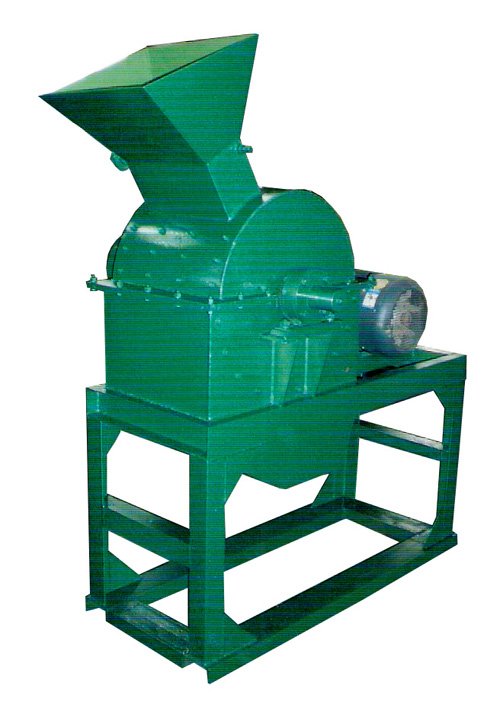

Coal crushing machine - 850

Coal crushing machine - 850
:
Zhengzhou Toone Mechanical Equipment Limited Company
: 2012-08-20 01:37:30
:
coal crusher,coal crushing machine,crusher

Inquiry Supplier / Manufacturer
Description Of Coal crushing machine - 850

Coal crushing machine - 850 Specificaton & Trade Terms

Model850
Place Of OriginChina
PackagingStandard export package and fumigation-free wooden cases
BrandToone
GuranteeSix month including wearing parts
CertificationsISO
Price TermEX-Work,FOB,CIF,etc
Payment TermT/T,L/C
Supply Ability10 sets / week
Minimum Order1 set
Loading PortsQingdao,Tianjin,Shanghai,etc
Delivery TimeAbout 30 days
Horizontal screen coal crusher specification:
Type 850
Capacity(t/h) 18-22
Spindle rotating speed (r/min) 1050
Power (kw) Y250M-4-40
Dimension (L*W*H)mm 22507002400
Max feeding size (mm) ≤30
Dischaging size (mm) ≤3
Weight (kg) 4600

Horizontal screen coal crusher working principle:
Material through the feed inlet, and impact with the high-speed rotating casing, extruded and broken, Then colliding with the hammerhead. after several impact into powder (below 3mm) in the process of falling, discharged from the lower plate. Large size particles continue to be broken by hammer, until the discharge from sieve plate.
