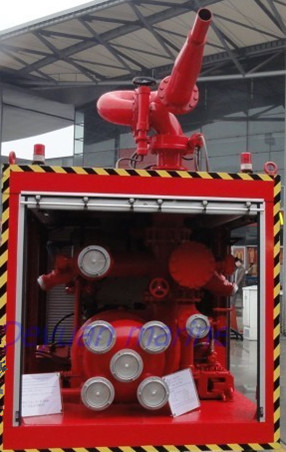

Class External Fi-Fi System - 321456 Specificaton & Trade Terms
| Model | 321456 |
|---|
| Place Of Origin | jiangsu |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Driven by:Diesel engine. The fire pump and engine will be installed on a common base.
Consisting of:
1) Fire Pump:2 sets
Type: Horizontal, single stage, centrifugal pump
Duty Specified
Capacity: 600 m3/h
Total Head: 130 m L.C.
Speed: 2100 rpm
Power absorbed : 273.6 kW (Seawater)
Efficiency: 80%
Discharge : Top, DN200 PN 25
Suction: End, DN250 PN 16
Direction of rotation: CW (viewing from driver end)
Materials of Construction
Casing: Nodular cast iron
Impeller: Bronze
Shaft : Stainless steel AISI 316
Packing: Soft packed
2) Diesel Engine:2 sets
Engine Model:TBD234V8, China
Type:4 Cycle, 8 Cylinder, electrical start, 24VDC
Rating Type:Heavy Duty
Rated Engine Power:323kw @ 2100 rpm
Direction of rotation:CCW (viewing from driver end)
3) High Flexible Coupling
Mounted between PTO of diesel engine and pump
Final model to be selected by maker.
