Chain Hoist

Inquiry Supplier / Manufacturer
Description Of China Puller - 001

China Puller - 001 Specificaton & Trade Terms

Model001
Place Of OriginChina
Packagingcarton
Brandchangjiang
Price TermFOB
Payment TermT/T
Supply Ability10000
Minimum Order1
Loading Portstianjinxingang
Delivery Time7days

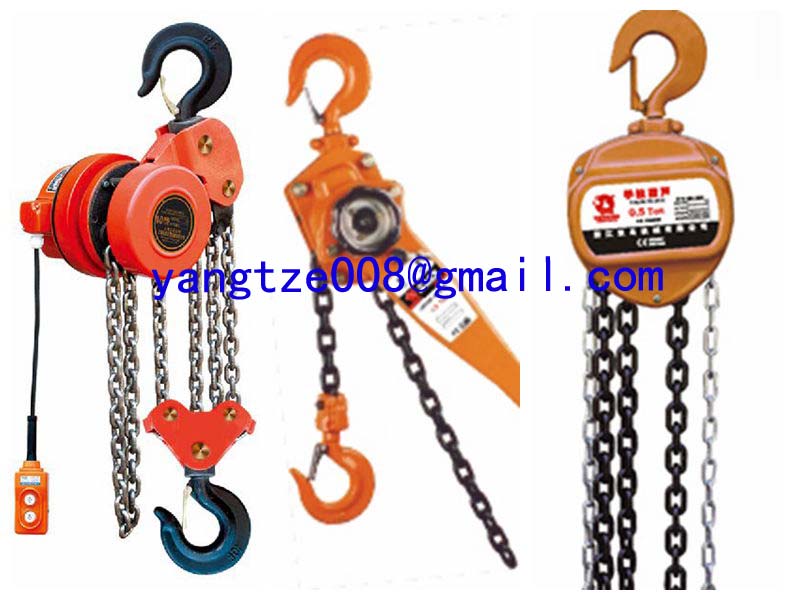

China Puller
Lever Block(Y-TYPE)
Ratchet puller Manual Hoist are great for precision lifting without handling messy chains.
Simply crank handle to lift and position loads. Direction of pull controlled with one flip of the self-locking thumb lever.
1,Impact resistant, stamped steel frame, gear case and cover for durability and light weight.
2,Hardened steel load sharing gears.
3,Double pawl arrangement for assured load control.
4,Two chain guide rollers for positive chain engagement.
5, Weston type braking system for positive load control and positioning.
6,Simple one-handed, free chaining for fast load attachment
7,Minimal maintenance with no special tools required.
This Lever Block is used to connect conductor or tools when stringing works for overhead conductors,and also used to load or draw heavy materials.The length of chain can be made longer according to option.

Model
No. Capacity (tons) Standard Lift (m) Load chain diameter(mm) Strands of load chainĀ  Weight
(kg)
CJ-7.5 0.75 1.5 6.3 1 6.9
CJ-15 1.5 1.5 7.1 1 9.7
CJ-30 3 1.5 9 1 16.3
CJ-60 6 1.5 9 2 26.7
China Puller
