Cable reel carrier trailer,Cable Carrier - Great wall Specificaton & Trade Terms
| Model | Great wall |
|---|
| Place Of Origin | China |
|---|
| Packaging | carton |
|---|
| Brand | Great wall |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 1000set/day |
|---|
| Minimum Order | 1set |
|---|
| Loading Ports | tianjinxingang |
|---|
| Delivery Time | 7days |
|---|

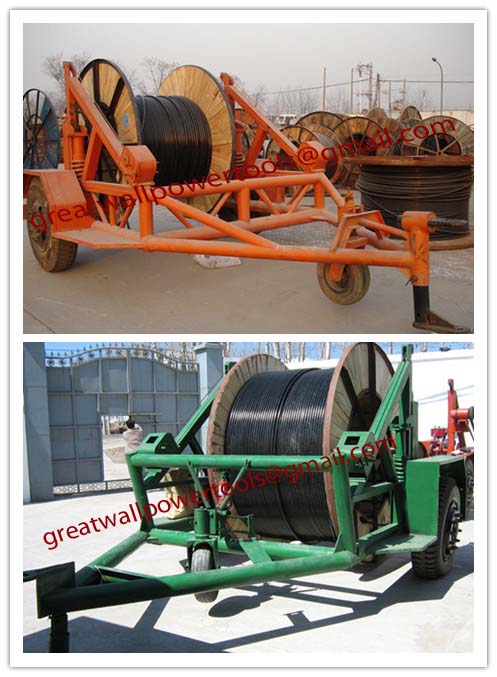

Cable reel carrier trailer,Cable CarrierCable reel carrier trailer,Cable CarrierCharacteristics:
1.Suitable for overhead* and underground cabling operations.
2.Loading and unloading are safely carried out by one operator by means of a hydraulic motor tilting frame.Cable reel carrier trailer,Cable Carrier
3.The trailer in standard version is equipped with a 70 mm diameter drum shaft and two centering cones.Cable reel carrier trailer,Cable Carrier
4.Tow bar adjustable in height.
5.Overrun brake.
6.Optional drum shaft brake.
Please contact us is you have any requirement, and we can make products with special specification as your requirements.Cable reel carrier trailer,Cable Carrier
Product No. Rated load Applicable drum diameter Applicable drum width Axle bar diameter Dimension of main body
DH3050-3 3T ≤φ2400mm ≤1400mm φ76mm 3800mm×2300mm×2000mm
DH3050-5 5T ≤φ2800mm ≤1600mm φ90mm 4000mm×2600mm×2200mm
DH3050-8 8T ≤φ3400mm ≤1800mm φ120mm 4300mm×3200mm×2400mm
D3050-10 10T ≤φ3600mm ≤2000mm φ150mm 4600mm×3800mm×2600mm
