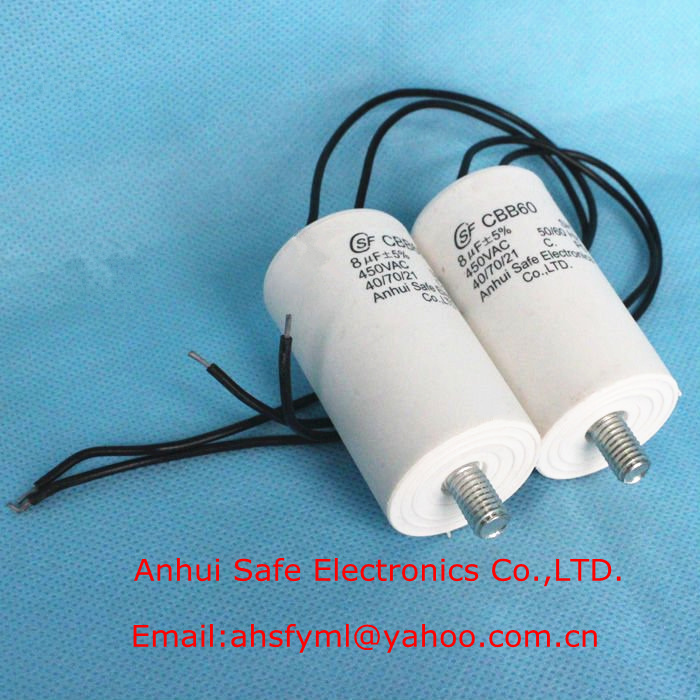

CBB60 waterproof capacitor - CBB60 AC motor capacitor Specificaton & Trade Terms
| Model | CBB60 AC motor capacitor |
|---|
| Place Of Origin | China |
|---|
| Packaging | with carton |
|---|
| Brand | SaiFu/CSF/OEM |
|---|
| Certifications | ISO9001 UL CE |
|---|
| Price Term | FOB CIF CNF |
|---|
| Payment Term | T/T,LC,West Union |
|---|
| Supply Ability | 10000pcs/day |
|---|
| Minimum Order | 20pcs |
|---|
| Loading Ports | Shanghai/Ningbo |
|---|
| Delivery Time | 3~7days |
|---|
The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.
Applications
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.
Technical Specifications
Standard：IEC 60252-1:2001
Technical features：
Climate type：40/70/21 or 40/85/21
Capacitance tolerance：± 5%
Insulation Resistance：≥3000S（MΩ·µF）
Dielectric dissipation factor：tgδ≤0.002 (50Hz～100Hz)
Application requirements：
Altitude：≤2000m
Residual voltage in application :less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current
Package & Delivery:
With standard export carton or according to customer's requirement.
We can ship all over the world by DHL,UPS,FedEx and EMS.We offer short time delivery,shipment will be complete often 3~7 days after receive of deposit.
Advantages of our company:
1.For large orders,we will give you a large discount!
2.You pay the factory price!!!
Because we are a direct manufacturer of brand new capacitors,that is why our price is so competitive!
3.Customer's desin and logo are welcome!
4.Small order acceptable.
5.All email will be answered within 24 hours.
