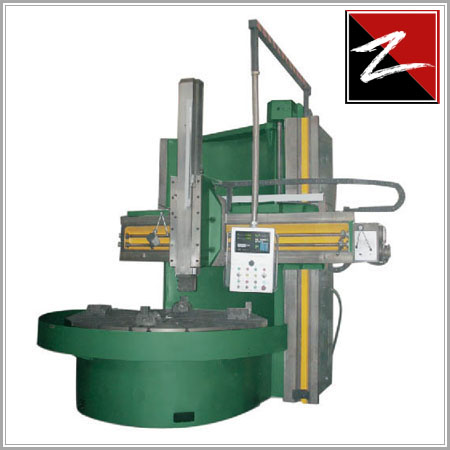

Description Of C5126E Single Column Vertical Lathe - C5126E

C5126E Single Column Vertical Lathe - C5126E Specificaton & Trade Terms

ModelC5126E
Place Of OriginDalian, Liaoning, China
Price TermEX-Work
Payment TermT/T
 This type of vertical lathe with the Super-premium quality is famous in domestic market.
 The beam guide and ram guide are handled by supersonic frequency induction hardening(HRC≥50)while the sliding surface of guide is treated with sticking plastic(including inclined veneers and pressure plate).The precision of the product can be maintained for a ling time and the cycle for heavy repair can be extended more than 10years.
 Premium casting (all is HT300) is adopted in lathe, and the artificial heat ageing is carried out. The casting can never be carried out with weight-reducing treatment, the weight of the whole machine accords with the standard one.
 Five –angle tool carrier adopts high-precision rat fear for positioning and for all 120 pieces, super-strong stiffness.
 4 axial digital displays is taken as the standard confirmation. The electrics adopt Japan Omron PLC control and the electric components utilize the components with ultra-high quality, specification (CE standard) assembly process, in addition, the electrics of the whole machine own super-high reliability. Electric rotary valve, Grade 16 machinery variable aped makes the device convenient, smart and reliable. High-precision gear grinding gear and gear grinding spiral bevel (Grade 6 precision)are featured with low noise and stable operation.
 JB/T4116-96 precision test standard of vertical lathe is performed.JB/3665-95 technical condition of vertical lathe is performed.
 Accessory configuration is complete and only the user prepares for the knife and measuring tool, the operation can be started immediately. Best after-sale service (pre-sale, sale, after-sale, installation, debugging, training and guarantee)
Optional configuration: rolling working platform, Germany Mecano button station, heightening lathe and prolonging ram and square ram etc.
