Building Collapsed Rescue Hydraulic Combination - GYJQ-63-28/32-A Specificaton & Trade Terms
Model | GYJQ-63-28/32-A |
---|
Place Of Origin | China |
---|
Brand | Aolai |
---|
Certifications | EN13204/CE/ISO9001-2008 |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
Minimum Order | 1 pc |
---|
Loading Ports | Qingdao/Beijing/Tianjin |
---|

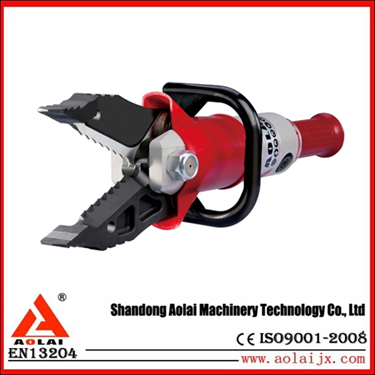

Building Collapsed Rescue Tool Hydraulic Combination GYJQ-63-28/32-A
Decription
1-Material: Shearing Blade adopt High-quality Heat-treated Tool steel, with surface anodized, good in wearing resistance;
2-Functions: shearing, expansion and pulling functions. The multi-functional pliers can instead as a cutter and a spreader;
3-Applications:
#Traffic accident rescue, earthquake disaster relief and accident rescue etc.;
#Suitable for rescue operations maneuverable;
#Unclenching the door and metal structure into deformation;
#Cut metal structure, vehicle parts, pipeline and metal plates
Features
#Splashing collapse prevent design during shearing operation with automatic reset manually controlled steering valves, provides security for the manipulator;
#Manual control valve operation can drive the blade and fix in any positions with self-locking function;
#Short period to open and close blades accelerates the rescue process;
Technical Specification
#Max. Opening Distance of Blades:≥350mm
#Rated Working Pressure:63MPa(630bar)
#Max. Cutting Capacity(Q235steel):15mm(steel plate); Φ28mm(circle steel)
#Cutting Force:325KN(32.5T)
#Spreading Force:60KN(6.0T)
#Hauling Distance:230mm
#Rated Hauling Force:55KN
