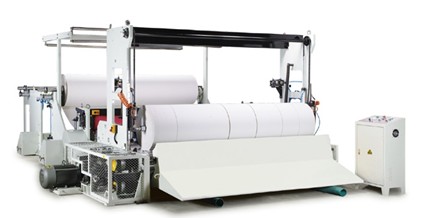

Automatic tissue slitting rewinder - PFJ-D 2200

Automatic tissue slitting rewinder - PFJ-D 2200
:
Advanz Paper Equipment Limited
: 2013-08-01 18:46:20
:
Slitting,rewinder,slitting machine, slitting rewin

Inquiry Supplier / Manufacturer
Description Of Automatic tissue slitting rewinder - PFJ-D 2200

Automatic tissue slitting rewinder - PFJ-D 2200 Specificaton & Trade Terms

ModelPFJ-D 2200
Place Of OriginChina
Price TermCFR
Payment TermT/T
1. Product type: PFJ-B (2200)
2. Production capacity: Max speed: 250m/min;
3. 03 stands after frame for paper unwinding,
4. Max.parent roll diameter: Ф1200mm,
5. Max.parent roll width: 2000mm,
6. Finished product diameter: Max Ф1200mm,
7. Finished product width: ≥150mm, adjustable,
8. Paper core inner diameter: Ф76mm,
9. Required power: 7.5KW/380V/50HZ,
10. Required air pressure: ≥0.7MPa,
11. 01 unit steel to rubber calender.
12. Origin: China.
Unit Price: USD23000.00
