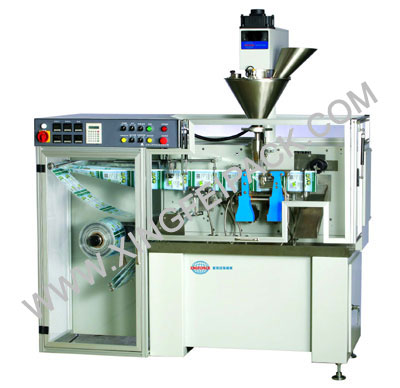

Automatic horizontal packing machine - XFS-110 Specificaton & Trade Terms
Model | XFS-110 |
---|
Place Of Origin | ShangHai China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
1. Automatic horizontal packing machine is a completely new packing machine which is made up of bag-making, dosing, filling and sealing. And the wrapping material is all kinds of multilayer heat-sealable films. Match with different filling head, the machine can pack powders, liquids, pastes, granule in three side or four side sealed sachets.
2. Character: It adopts PLC human-machine interface and all the actions are driven by air cylinder. The system for going down film uses servomotor control so that we can adjust dimension of film randomly, it has the advantage of high efficiency, applicability and stability. The package is beautiful, and the sealing strength is high. It is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, feedstuff industry and so on.
3. Technical data
Model XFS-110
Bag-making Size(W×H)
50×50--110×130mm
Volume
2.5 -- 60 ml
Capacity
40 -- 90 bag/min
Consumption
1.9KW
Power supply
380V/50Hz/3phase
Weight
450 Kg
Dimension(L×W×H)
1840×750×2000 mm
