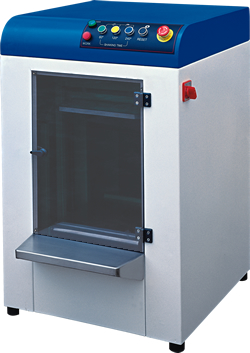

Automatic Clamping Paint Shaker - KD-30C Specificaton & Trade Terms
Model | KD-30C |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
Case size:1060(H)×700(W)×680(D)mm
Packing size:1200(H)×840(W)×810(D)mm
Case weight:210Kg
Gross weight:245Kg
Can size:360(H)×360(W)×350(D)mm
Can compress-board readjust range:90-400mm
Shaking time:60/120/240s
Applicable range:1-35Kg
Pressure:3500N
Power:750W
Speed:1400r/min
Shaking frequency:680-710t/min
Power supply:220V±10% 50Hz 10A
Features of KD-30C
Small size, save space!
Compose with main vibrator,container press cover and microcomputer controller and so on,is suitable to 0.5-20L all kinds of can/barrel.Max load weight is 35Kg.
With PLC microcomputer control--can choose and readjust the shaking time freely,long use life span.
Automatic clamp and bring different pressure to bear on the can according to the can size,will not squish or stave the can.
High speed and thoroughly mixing--with up and down,front and back continuous multi-shake movement.
