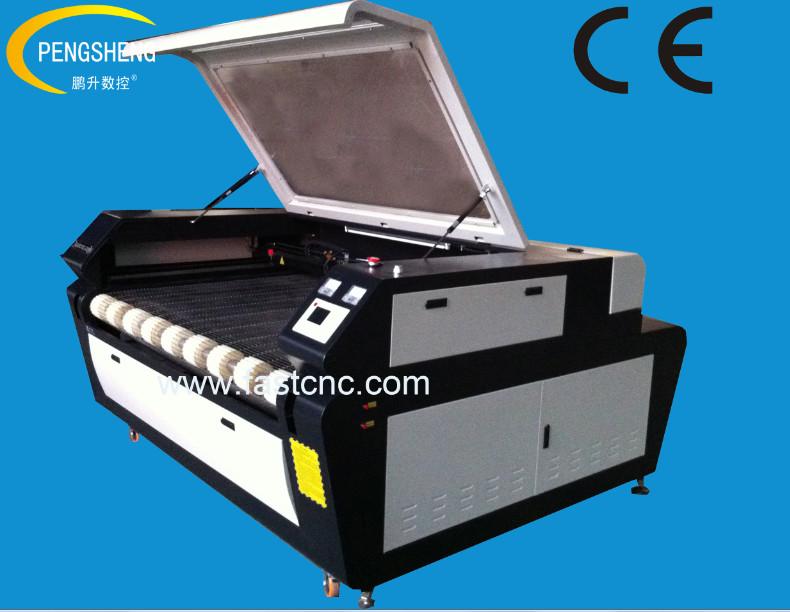

Auto feeding CO2 laser cutting machine - PC-1610LA

With the development of large format cutting industry,auto-feed laser cutting machinebe developed,this machine can cut materials with high speed and high efficiency.
Feature:1.Adopt the international advanced DSP control technology, it is the pioneer to fast continuously curving-cut and shortcut processing pathway optimizing function,accordingly increase greatly the decency.2.It automatically equalizes the diminishing of light during the whole operating to ensure the same cutting effect ion different area.3.High-speed cutting control software and buffer function in high-speed movement can improve production efficiency.4.The up-to date software provides the direct output of original pictures; completely fit the graph foams such as CAD, CAM of CAD, and CorelDraw software, to meet the practical design requirement of the end users.5.The advanced colors and the toms of the cutting can realize the one-time output completely or partially.6.It uses USB port to transmit data, equipped with large-capacity memory, improving working efficiency greatly.
Technical Parameter:
Model PC-1610LA
Table Size（mm） 1600*1000
Laser Power 　　60W/80W/100W/130W/150W
Laser Type 　　CO2 sealed laser tube, water-cooled, 10.6um
Cooling type 　　Water-cooled
Engraving Scanning Speed 　　0-6000mm/min
Max Moving Speed 　　30000mm/min
Cutting speed 　　0-1000mm/min
Laser Output Control 　　1-100%software setting
Smallest letters 　　English 1.0mm*1.0mm
Highest Scanning Precision 　　2500DPI
Locating Precision 　　0.01mm
Supported File Format 　　DAT,PLT,BMP,DXF,AI,etc.
Compatible Software 　　TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD
Operating humidity Temperature:0-45,Humidity:5%-95%(without condensed water)
Optional parts Up&down table,auto focus system,rotary device,
ball scew transmission,water chiller.
Applicable Industries:Advertising industry:Double-colored board engraving,Organic glass engraving and cutting,Label engraving,Crystal cup engraving,Warranty signed engraving.
Carved gifts and crafts industry:Wood,Bamboo Ivory ,Bone,Leather,MarblePacking and printing industry:Rubbery board,Plastic board,Double-layered board, Model cutting board.
Leather clothing industry: Complex letters and pattern engraving,Cutting on hypoderm, Synthetic leather,Man-made leather,Cloth Architectural model industry: ABS board cutting,Model cutting Production totem industry: Appliance signs,Anti-fake commodities making.
Applicable Materials:Wood,Bamboo,jade,marble,acrylic,crystal,leather,plastic,paper,rubber,ceramic,glass and other non-metal materials.
