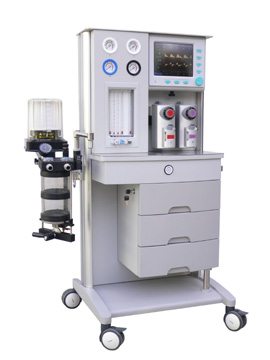

Anesthesia Machine - ARIES2500

eatures:

Two independent working interfaces for Adult and peadiatric sepratly

Al-alloy frame and with stainless working table



Anesthesia Ventilator

Respiration Pattern:IPPV,VCV,PCV,SIMV,SIGH,MANUAL,STANDBY,DEMO

Display:10.4 TFT color screen

Waveform: P-t, F-t

Tidal Volume:20ml to 1600ml

Respiratory frequency:1 to 65bpm

IE ratio:8:1--1:8

Inspiration pause:0--50%Ti

Inspiration Pressure:1--60cmH2O

Trigger Pressure:-10--10cmH2O

Pressure Alarm setting:High Alarm limit Set 1--60cmH2O,Low Alarm limit Set 0--20cmH2O

O2 Concentration Alarm setting:High Alarm limit Set 21--99%, Low Alarm limit Set 21--50%

MV Alarm setting:High Alarm limit Set 10--99L/min, Low Alarm Limit Set 0--40L/min

Monitoring Parameter:

O2 concentration, MV, respiratory frequency, tidal volume, Ppeak, PEEP, I:E ratio, Pmean, etc.

Alarm parameters: pressure high alarm, pressure low alarm, O2 concentration high alarm, O2 concentration low alarm, MV high alarm, MV low alarm, AC power lost alarm, O2 lost alarm etc.

Alarm silence function

Main unit

Circle absorber: compact circle absorber

Bellow:0-1600ml

Flowmeterbacklight design:

O2,N2O, Air five-tube flowmeter

O2 tube:0L/min1L/mim10L/min

N2O tube:0L/min1L/mim10L/min

Air tube:0L/min10L/min

O2 and N2O Linkage Device

Adjust O2 and N2O in proportion(O2 concentration is not lower than 25%)

Oxygen flush:35L/min75L/min

Gas source pressure:

O2:0.27MPa0.55MPa

N2O:0.27MPa0.55Mpa

Air:0.27MPa0.55MPa

Gauge: 4 units, two is for N2O, one is for O2 one is for Air

Anesthetic Vaporizer: two vaporizers

Halothane vaporizer, Enflurane Vaporizer, Isoflurane Vaporizer and so on.

Penlon vaporizer imported from UK is available.
