Acid-resistant Paronite Sheet - df4 Specificaton & Trade Terms
| Model | df4 |
|---|
| Place Of Origin | china |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Product description

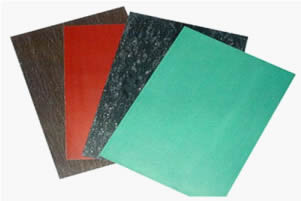

Acid-resistant Paronite Sheet,
thickness 0.4 mm Acid-resistant paronite is highly recommended for equipment in acid environment. It is based on long asbestos fiber, acid-resistant synthetic rubber and sulfur. It is available for organic-based solvents, alkalis, acids and other corrosive liquids and gases. This paronite sheet can be used in any climatic conditions, with a wide range of working temperatures from -60�� (-76�H) to +250�� (+482�H).
Specification
Thickness: 0.4 ~ 6.0 mm;
Length�� Width:
4100��1500mm; 3810��12 70mm; 2000��1500mm; 1500��1360mm; 1270��1270mm; 1500��1500mm;
Packaging
Packed in boxes (wood, cardboard or metal) or crates lined with water-proof paper.
Operating condition and application
Working environment Max pressure MPa Max temperature �� Connection Equipment
Organic-based solvents 1 250 Tongue and groove, hollow-ledge, smooth Pumps, compressors piping fittings
Oxidizers, alkalis, acids, and other corrosive liquids and gases 2.5 150
Physical and mechanical property
Item Value
Density 2.0 - 2.5g/cm3
Tensile strength (transverse) 10 MPa
loss on ignition 25%
Compressibility (35 MPa) 2% - 12%
Recoverability (35 MPa) ��30%
