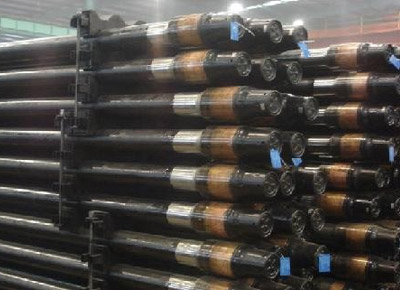

API 5DP Drill Pipe - Drill Pipe

Brief Description:
API 5DP Drill Pipe, Outside Diameter: 2-3/8 to 6-5/8 Inches, Steel Grade: E75, X95, G105, S135 Type of Upset: IU, EU & IEU.
Product Details:
Standard: ANSI/API Specification 5DP, First Edition, August 2009 or ISO 11961:2008
Outside Diameter: 2-3/8 to 6-5/8 Inches(60.32-168.28mm)
Steel Grade: E75, X95, G105, S135
Upset Type: IU (Internal Upset), EU (External Upset), IEU (Internal-External Upset)
Range Length: R1 (6.10-7.01metres), R2 (8.84-9.75metres), R3 (12.19-13.72metres)
Drill pipes are steel tubes with threaded ends that are used to connect a drill rigs surface equipment with its drilling equipment, or bottomhole assembly, at the bottom of a well. They are used to transport drilling fluid to drill bits, and to raise, lower and rotate the bottomhole assembly along with the drill bit. Drill pipes must be manufactured to withstand severe internal and external pressure, distortion, bending and vibration. They are reusable and are not considered consumables in the process of exploring for and extracting oil and gas.
Green pipes, raw steel tubes, are processed through a number of steps to make them into drill pipes. First, the walls of green pipes are thickened by a process called upsetting through which a pipes exterior surface is pushed inward. Next, the pipes are threaded and receive a strength-enhancing copper plating. Nondestructive quality control inspection then takes place, after which the pipes are welded to tool joints. Pipes then undergo weld heat treatments and a weld finishing processes that removes welding stress. More tests, including hardness, pressure and non-destructive inspection are carried out on the finished drill pipes before final coating and packaging.
The length of drill pipe typically is around nine meters.
