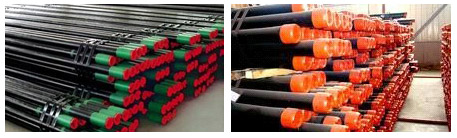

API 5CT Tubing Pipe - Tubing Specificaton & Trade Terms
| Model | Tubing |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Brief Description:
API 5CT Tubing Pipe, Outside Diameter: 2-3/8 to 4-1/2 Inches, Steel Grade: J55, N80, L80, P110 Type of End-Finish: EUE & NUE Length Range: R1/R2/R3 Manufacture Process: Seamless or Electric-Welded (Electric-Resistance or Electric-Induction Welded)
Product Details:
Standard: API Specification 5CT, Ninth Edition, July 2011
Outside Diameter: 2-3/8 to 4-1/2 Inches (60.32-114.30mm)
Steel Grade: J55, N80, L80, P110
Range Length: R1 (6.10-7.32metres), R2 (8.53-9.75metres), R3 (11.58-12.80metres)
Manufacture Process: Seamless or Electric-Welded (Electric-Resistance or Electric-Induction Welded)
Type of End-Finish: NU (Non-Upset), EU (External-Upset), or PE (Plain End, unthreaded)
Type of Thread: 8 Round Thread or 10 Round Thread.
Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes.
The tubing production processing is similar to the process of casing production.
Tubing pipes typically have diameters of 60.32 mm to 114.30 mm.
