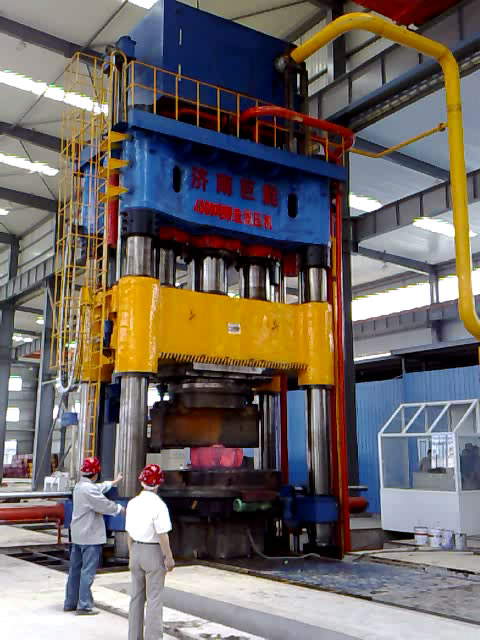

4000 ton free forging press - ZDYJ-4000 Specificaton & Trade Terms
| Model | ZDYJ-4000 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
CAPACITY 31500KN
WORKING OIL PRESSURE 25Mpa
DAYLIGHT 4000mm
STROKE 2000mm
DISTANCE BETWEEN COLUMNS CENTER 3500x1900mm
DIAMETER OF COLUMN 500mm
DIMENSION OF SHIFTING TABLE 6000x2000x350mm
STROKE OF SHIFTING TABLE 4000mm
CAPACITY OF RETURN 2000KN
WORKING POSITIONS OF SHIFTING TABLE 3
ECCENTRICITY DIMENSION OF FORGING 150x120mm
GRADE NUMBERS OF CAPACITY 2
FIRST CAPACITY 15000KN
SECONDLY CAPACITY 31500KN
THIRDLY CAPACITY KN
PRESSING SPEED AT APPROACH 300mm/s
PRESSING SPEED AT FIRST CAPACITY 137mm/s
PRESSING SPEED AT SECONDLY CAPACITY 55mm/s
PRESSING SPEED AT THIRDLY CAPACITY mm/s
RETURN SPEED 300mm/s
SPEED OF SHIFTING TABLE 200m/s
ACCURACY OF SHIFTING TABLE MOVING ±0.5mm
DEGREE OF FORGING 45times/min
CARRYING CAPACITY OF SHIFTING TABLE 50T
SHIFTING TABLE HEIGHT ABOVE FLOOR LEVEL 0mm
TOTAL POWER 2200KW
WEIGHT OF PRESS(TOTAL) 440T
OVERALL HEIGHT ABOVE FLOOR LEVEL 11000mm
