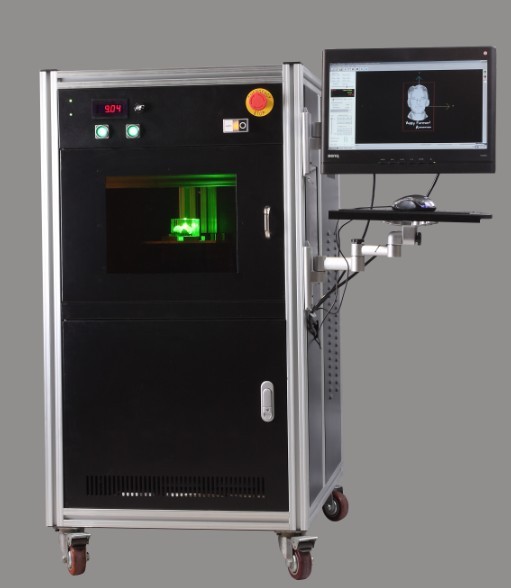

3D Laser Engraving Machine (XLELD2000B-E) - (XLELD2000B-E Specificaton & Trade Terms
| Model | (XLELD2000B-E |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
New Business Opportunities with Shining3d Laser Engraving Machine, Small cube size to large plate size, 2D and 3D Sub-surface Laser Engraving Possible.
High Resolution Solution:
Model Number: XLELD2000B-E
With the technology of diode pump, air cooler, engraving speed of 2000dot/sec and max engraving size at ellipse170*140*100mm, highest resolution (1200dpi), ELD2000B-E has a good balance between investment and quality. It is quite suitable to run in the shopping mall or tourism place to make 3D and 2D image crystal gift on spot, receive big orders and fulfill most of the requirement from the customer.
Technical Specification:
(1) Laser Medium: Diode (DPSSL-Q Switch)
(2) Laser Wavelength: 532nm
(3) Maximum Engraving frequency: 2KHZ
(4) Laser Source: 1
(5) Resolution: 1200dpi
(6) Engraving Dimension: Max Ellipse170×140×100mm (by one time engraving)
(7) Max Engraving speed: 120, 000dots/min (2000dots/sec)
(8)Typical engraving time: 50*50*80mm crystal---350K points 3d portrait
