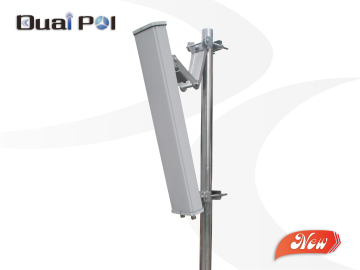

2.4GHz base station antenna - JHS-2425-12D120SN Specificaton & Trade Terms
| Model | JHS-2425-12D120SN |
|---|
| Place Of Origin | China |
|---|
| Packaging | Carton |
|---|
| Brand | Jinghong |
|---|
| Certifications | CE |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 1000 piece per week |
|---|
| Minimum Order | 5 piece |
|---|
| Loading Ports | Shanghai |
|---|
| Delivery Time | within 7 days after received payments |
|---|
JHS-2425-12D120SN is wide-band, dual-slant polarized 120 degree sector antenna which frequency covers from2.4-2.483GHz.It is designed for WiMAX/broadband wireless applications with uniform energy distribution in coverage area.
● Wide 120° Horizontal Beamwidth
● IP66 Waterproof Level
● Point to point, Point-to-Multipoint
● RoHS Compliant
Electrical
Model JHS-2425-12D120SN
Frequency Range 2400-2483 MHz
Gain 12.3 dBi (+45 Port) , 12.5 dBi (-45 Port)
VSWR ≤1.5
3dB Beam-Width, H-Plane 120°
3dB Beam-Width, E-Plane 15°
Polarization Dual Slant ±45°
Front to Back Ratio >30 dB
Port to Port Isolation >30 dB
Maximum Input Power 100 Watt
Impedance 50 Ω
Lightning Protection DC Grounded
Mechanical
Connector 2 × N Female
Antenna Dimension 493×104×52 mm
Weight 1.2 KG
Radome Material PVC
Mounting Mast Diameter Ø40~Ø60 mm
Operationg Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
