285W/36V Mono Solar Panel - MS-M672-285 Specificaton & Trade Terms
| Model | MS-M672-285 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|

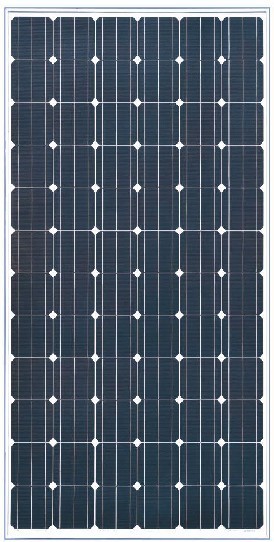

285W/36V Monocrystalline Solar Panel
Product Feature
1. High efficiency, outstanding workmanship.
2. Usig high transmittance pv glass, strong aluminium frame which can bear heavy snow and wind.
3. Module can made according to the requirements of client.
4. Easy install,free maintain.
Product Specification/Models
Maximum power(Pmax): 285W
Open circuit voltage (Voc): 44.71V
Short-circuit current (Isc): 8.30A
Maximum voltage (Vmp): 36.82V
Maximum current(Imp): 7.74A
Power output tolerance: +/- 3%
Solar Cell: 156 Mono
Number of Cell (PCS): 6*12 (72)
Size of Module: 1956*992*50mm
Weight Per piece: 23.00Kg
