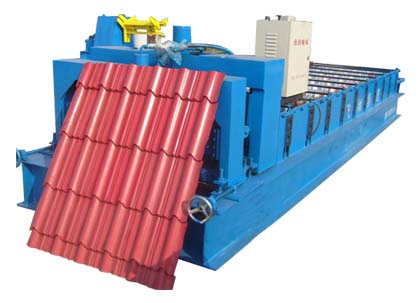

27-190-950 Tile Machine - 27-190-950 Specificaton & Trade Terms
| Model | 27-190-950 |
|---|
| Place Of Origin | shanghai, china |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Introduction
Model WD27-190-950 colored steel tile forming machine consists of uncoiler and its base, coil sheet guiding equipment, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table
Working Flow
Decoiling the Sheet →Sheet Guiding → Film Covering →Roll Forming →Measure Length → Cutting the Panel→ Panels to the Supporter.
Main Parameter
Machine Type YX 27-190-950
Frame Dimension 8m*1.5m*1.4m
Weight 5-7ton
Voltage 380V/50HZ, or according to customs’ requirement
Main Motor Power 5.5kw
Hydraulic Cut Power 5.5kw
Roller Material High grade 45# steel(plated chrome on surface)
Coil Thickness 0.4-0.8mm
Forming Speed 1-3m/min
Step Of Roller 14 steps
More details
Package Main body of machine naked loaded into container, covered with plastic film, spare parts in box
Delivery time 35days after receipt of deposit
Warranty 1 year, and we will provide the technical support for the whole life of the equipment
