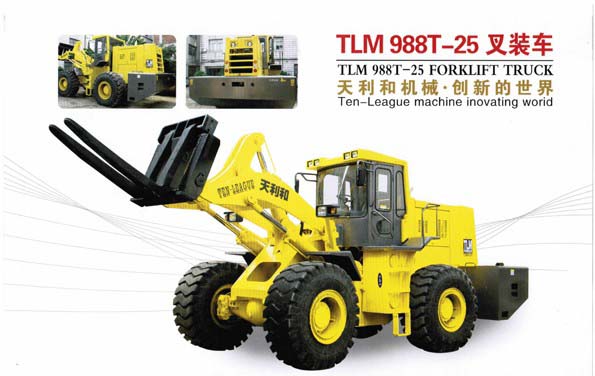

25T fork loader for sale - TLM988-25T Specificaton & Trade Terms
| Model | TLM988-25T |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
TLM988-25T Fork Loader Specification
Operating weight 25000kg
Rated load 21000kg
Max.traction force 160KN
Max.breakout force 180KN
Max.climbing gradient 12º
Dumping height 3100mm
Dumping reach 1210mm
Overall dimension 8160X3060X3500mm
Engine Model STR WD10G220E11
number of cylinder-cylinder dia*travel 6-126*130mm
Max.torque 860Nm
Rated Power 162kw(220HP)
Rated RPM 2200r/min
Torque converter single stage, four elements,double-turbine hydraulic torque converter
Gear box planetary hydraulic gear shifting
Gear II forward, I retreated
corresponding travel speed forward I: 0-9km/h
forward II: 0-36km/h
retreated I: 0-14km/h
Main drive type sprial bevel gear one-level reduction
Drive style four-wheel drive
Shafts distance 3470mm
Wheel distance 2362mm
Tyre air pressure back wheels: 0.475MPa front wheels:0.625MPa
Tyre 23.5-25
Steering angle right and left ±35°seperately,front and back frame bowed
Min. turn radius back wheel outboard: 7175mm
System operating voltage 16MPa
Time of raise ≤8.7s
Hydraulic cycle time ≤17.7s
Motor brake gas-cap oil-caliper disc four-wheel brake
Parking brake soft shaft manipulated clamp disc brake
Fuel tank 230L
Hydraulic oil tank 270L
