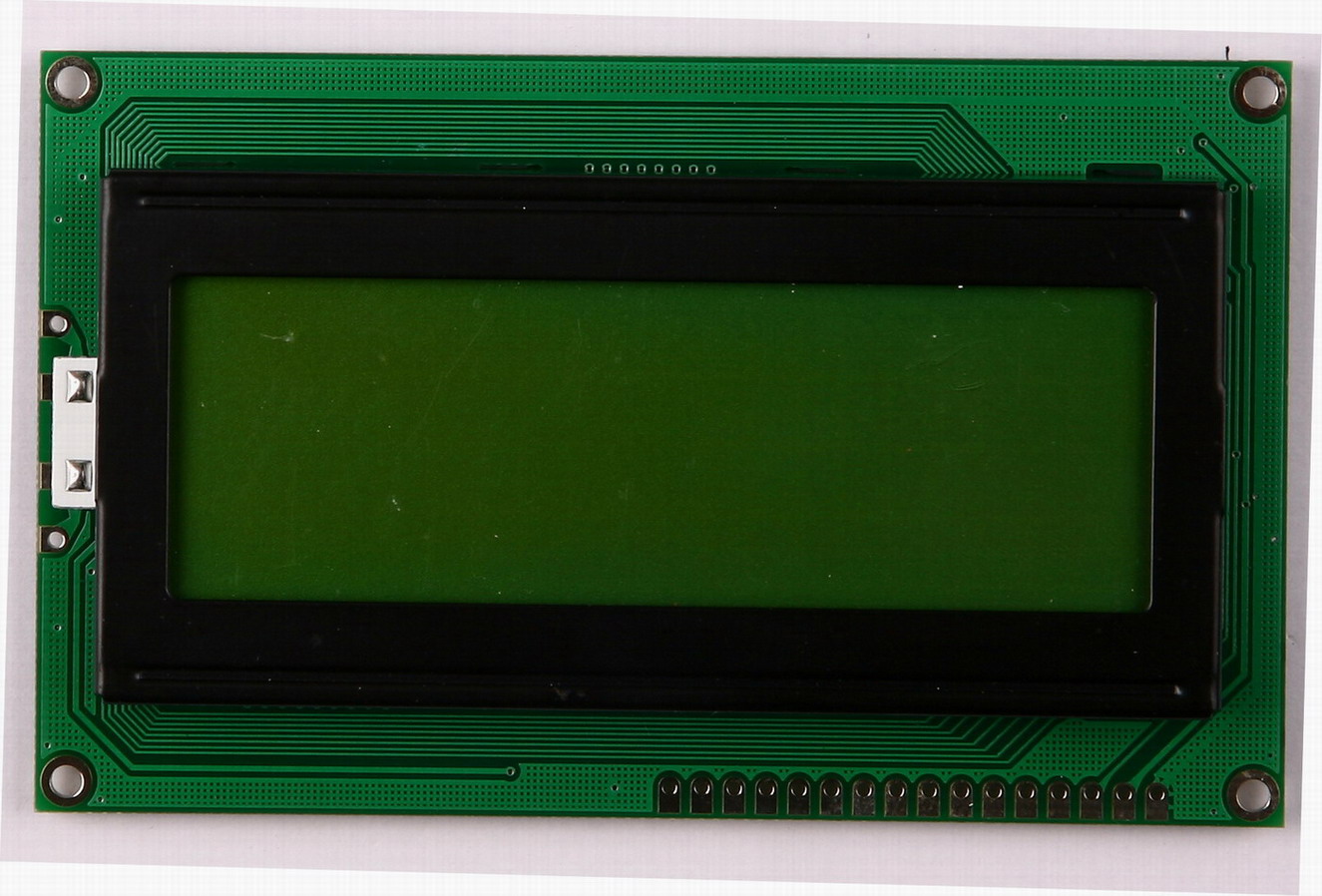

20CHARACTERS X 4LINES COB LCD Module - XCC2004B Specificaton & Trade Terms
| Model | XCC2004B |
|---|
| Place Of Origin | China |
|---|
| Packaging | ctn |
|---|
| Brand | XHP |
|---|
| Certifications | Rohs，SGS,ISO9001:2008 |
|---|
| Price Term | FOB Xiamen |
|---|
| Payment Term | T/T， Western Union |
|---|
| Minimum Order | 100pcs |
|---|
| Loading Ports | xiamen |
|---|
| Delivery Time | 22-25 days |
|---|
SPECIFICATION
Character Number 20W x 4H ---
Character size 2.95X4.75 mm
Overall Size 98X60 mm
Character pitch 3.55X5.35 mm
Viewing Area 76X25.2 mm
Dot size 0.55X0.55 mm
Hole – Hole 93X55 mm
Dot Pitch 0.60X0.60 mm
FEATURE
1.5x8 Dots with cursor
2.Built-in controller (SPLC780D or Equivalent)
3.+5.0V power supply (Also available for +3.0V)
4.1/16duty cycle
5.BKL to be driven by PIN1,PIN2 or PIN15,PIN16,or A.K.
6.N.V. optional.
Lead Time: 20 - 25 days
Temperature:
Operating: -20 to + 70 degree Celsius
Storage: -30 to + 80 degree Celsius
Display type: COB
Backlight: LED
